Mechanical Arm Clamp Claw Kit MG996 Servo For Arduino Robotic Education Programmable Kit
$59.99 – $249.99

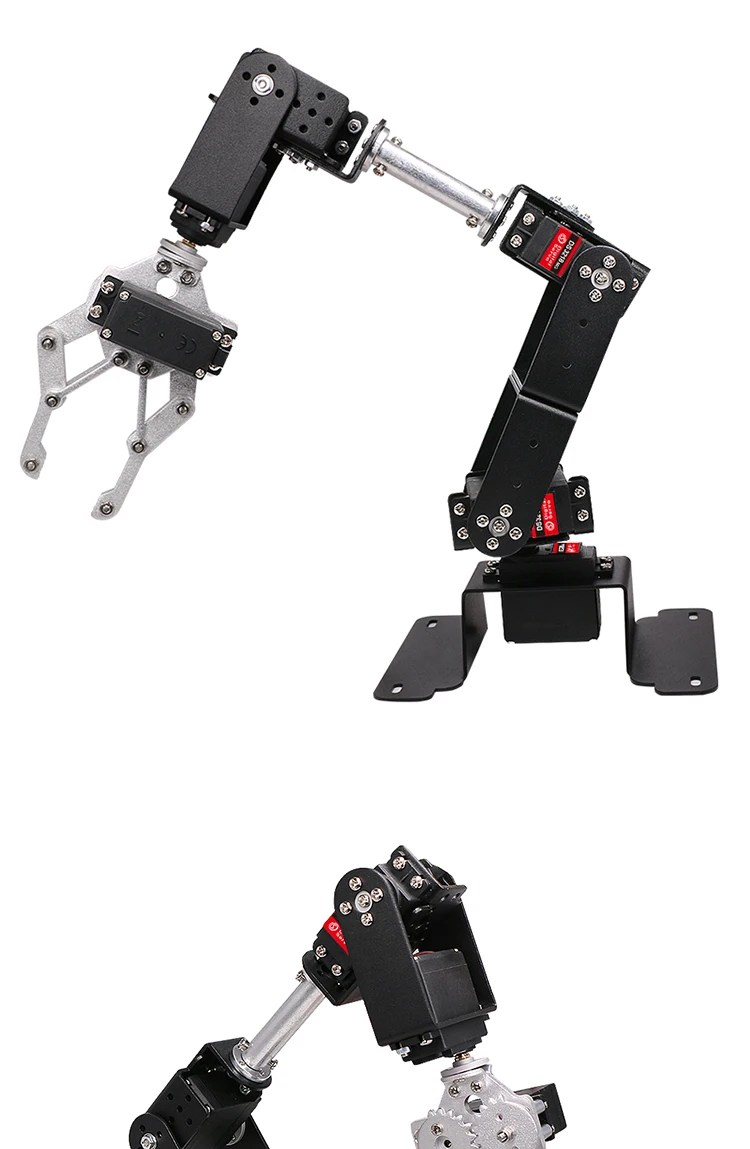

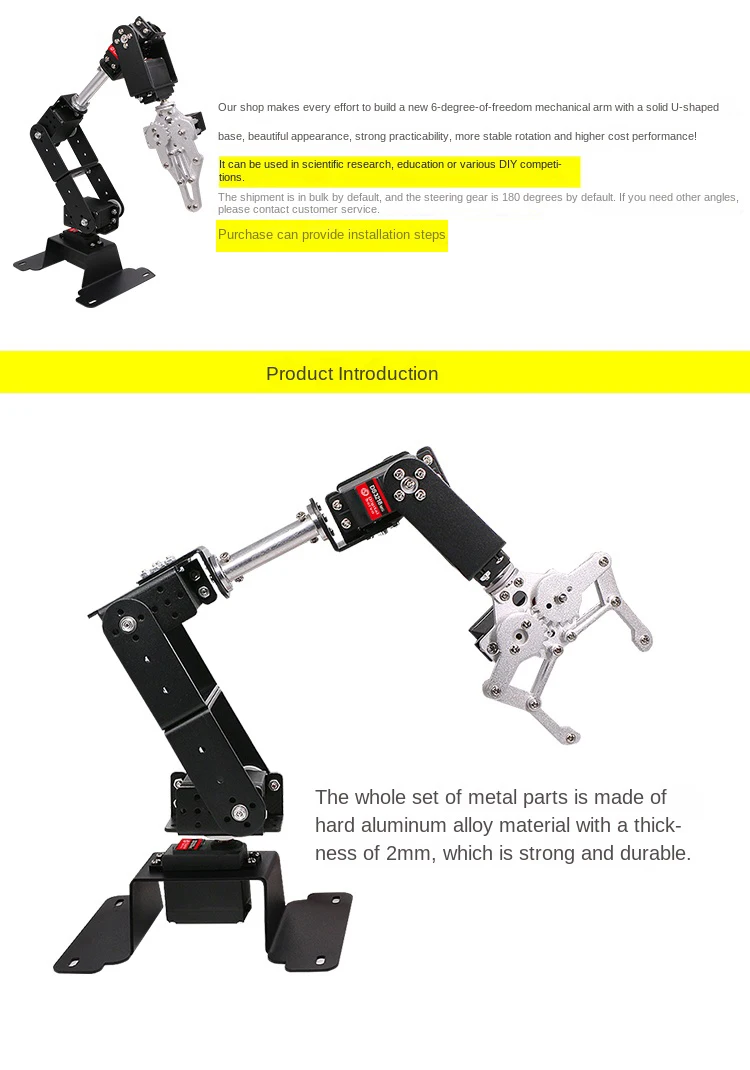

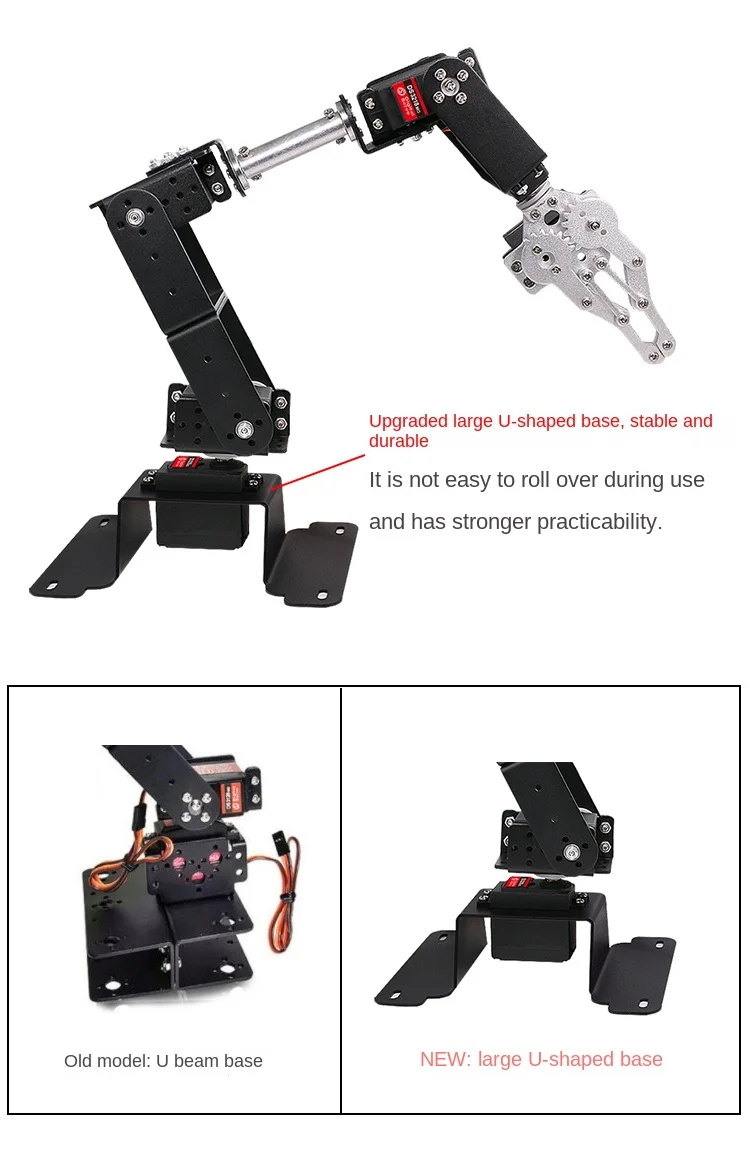

6 DOF Robot Manipulator Metal Alloy Mechanical Arm Clamp Claw Kit MG996R for Arduino Robotic Education
Description
SPECIFICATIONS
Brand Name: YoufangSmart
Recommend Age: 14+
Features:
-
Model:MG996R
-
Gear Type: Metal Gears
-
Stall torque:12kg/cm(6V)
-
Power Supply: Through External Adapter
-
Operation Voltage : 4.8 – 7.2 V
-
Temperature range: 0’C to 55lsquoC
-
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
-
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
-
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc…
-
Stable and Shock Proof.
-
Connector Wire:Length 300mm
-
Great for truck, Boat, Racing Car, Helicopter and Airplane
-
All gear:Metal
-
Rotation angle 90~180 degrees

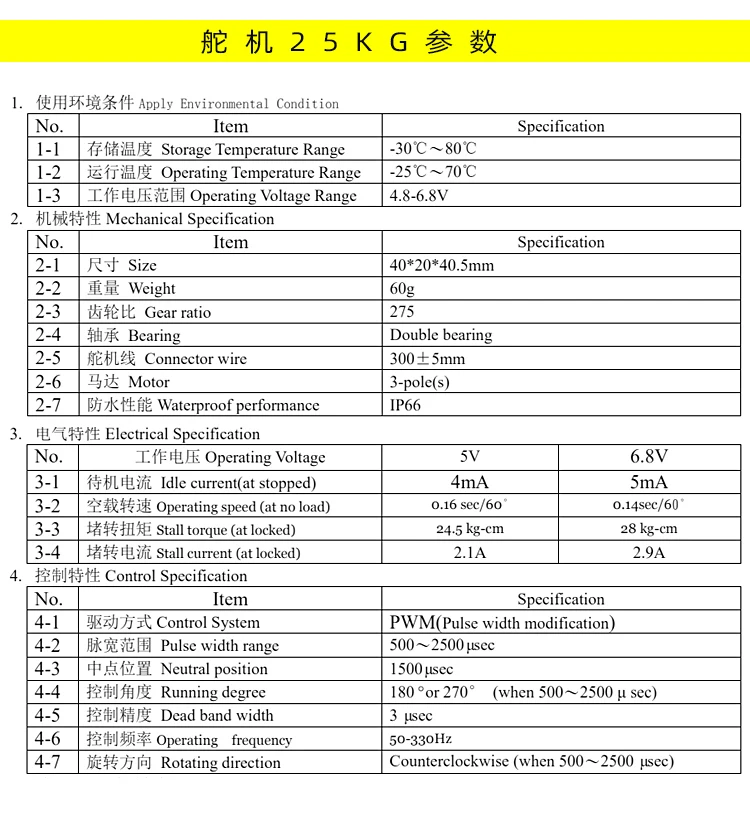

DS3218 Main parameters:
Voltage 5-6.5v
Stop-turn current: 2A
Controllable Angle optional 180 degrees, 270 degrees, 360 degrees
Drive mode: PWM
Pulse width range: 500-2500us
Control accuracy: 3us

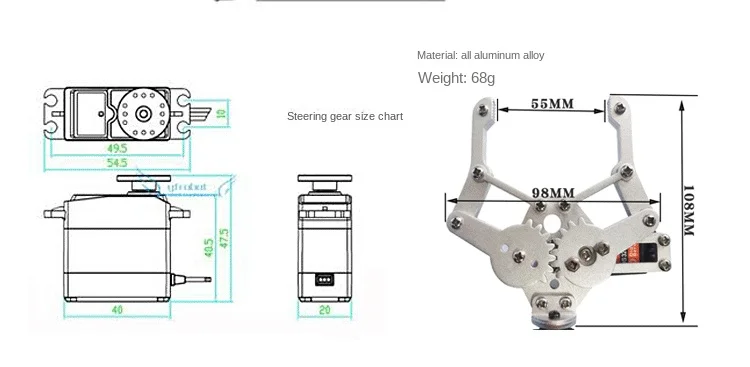

Size: 40*20*40.5MM
Weight: 60g

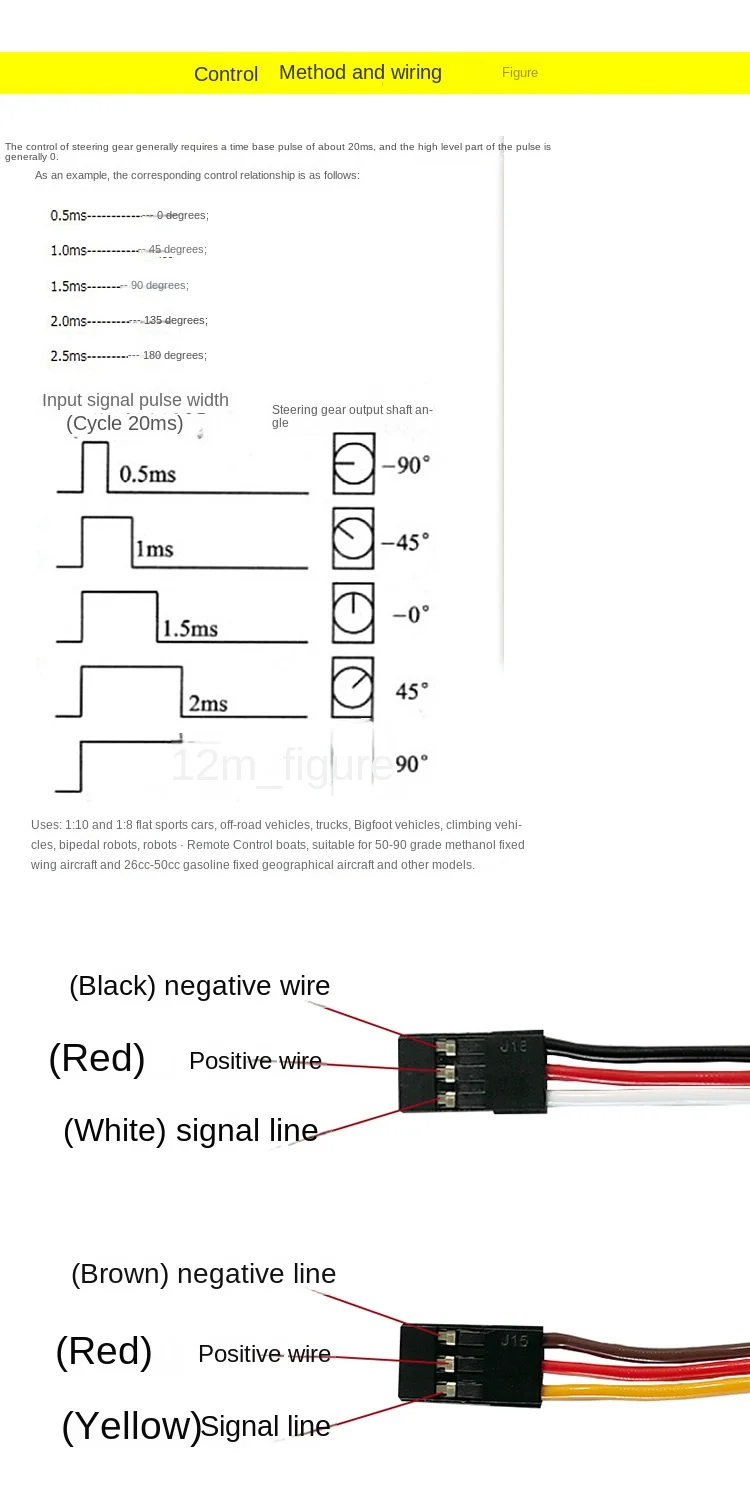

Steering gear three-wire connection: red positive brown negative orange signal, or red positive black negative white signal.
- DS3230 Main parameters:
Voltage 5-6.5v
Blocked rotor current: 3A
Controllable Angle optional 180 degrees, 270 degrees, 360 degrees
Drive mode: PWM
Pulse width range: 500-2500us
Control accuracy: 3us
Size: 40*20*40.5MM
Weight: 60g
Steering gear three-wire connection: red positive brown negative orange signal, or red positive black negative white signal.
-
Shipping list:

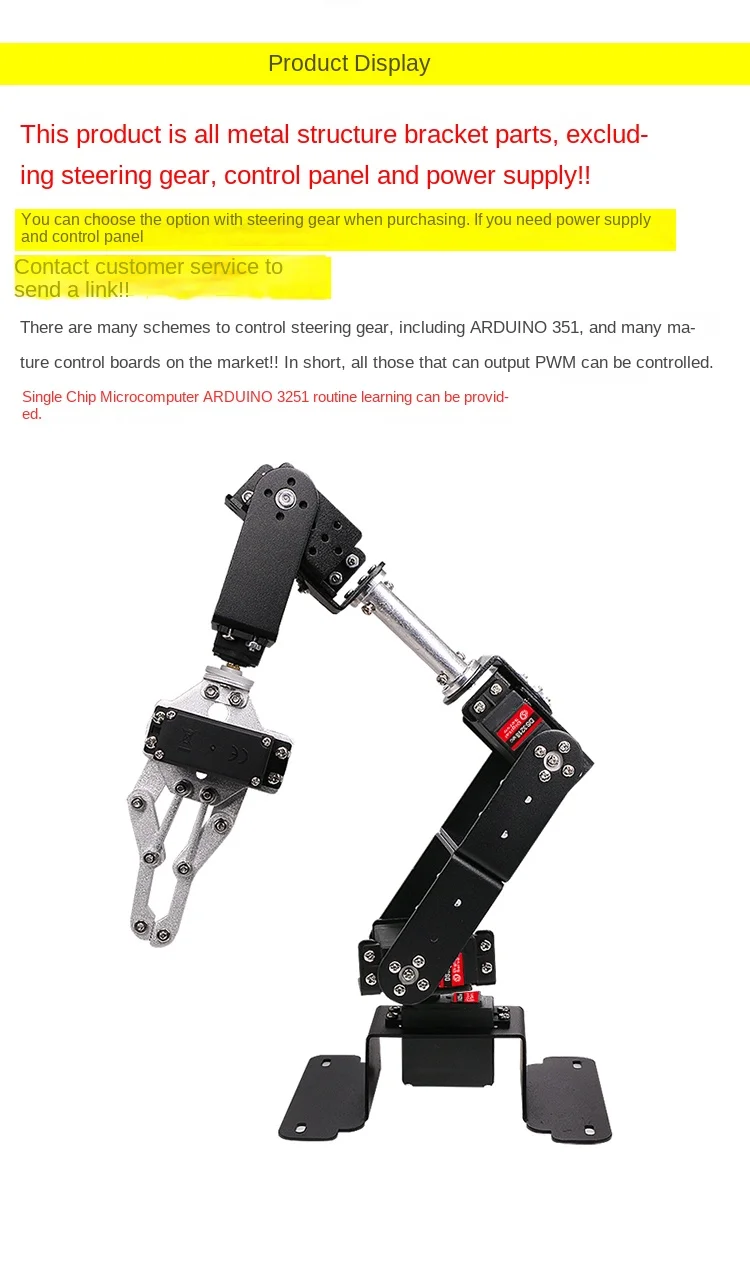

Only robot frame:
-
6 dof robot arm frame: 1 set(Not included servos and control board)
With 6pcs MG996R:
-
6 dof robot arm frame: 1 set
-
MG996R 180 degrees servo: 6pcs
180 Package 1:
6 dof robot arm frame: 1 set
MG996R 180 degrees servo: 4pcs
DS3218 Â 20kg, 180 degrees servo: 2pcs
360 Package 2:
6 dof robot arm frame: 1 set
MG996R 180 degrees servo: 4pcs
DS3218 Â 20kg 360 degrees servo: 2pcs
180 Package 3:
6 dof robot arm frame: 1 set
DS3218 20kg 180 degrees servo: 6pcs
6 dof robot arm frame: 1 set
DS3218 Â 20kg, 360 degrees servo: 6pcs
Full set 1:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + Arduino contorl board + PS2
Full set 2:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + ESP32 control board +Ps2
-
Full set 3:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + STM32 control board + Ps2
-
-
-
Full set 4:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + Arduino contorl board+ Ps2
-
-
-
-
-
Upgrade set 1:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 4pcs + 20kg 360 degrees DS3218:2 pcs + Â Arduino contorl board + PS2
Upgrade set 2:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + 20kg 360 degrees DS3218:2 pcs + Full set control  + ESP32 control board +Ps2
-
-
-
Upgrade set 3:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 6pcs + 20kg 360 degrees DS3218:2 pcs + Full set control  + STM32 control board + Ps2
-
-
Upgrade set 4:
-
6 dof robot arm frame: 1 set + MG996R 180 degrees servo: 4pcs + 20kg 360 degrees DS3218:2 pcs + Â Arduino contorl board + PS2
-
-
-
-
-
-
-
-
-
-
Technical documents as follow, the most complete development and design, you deserve to own this engineering project, we do technology first, service first, not just sell goods.
If you need this manual of Robotic arm routines and development documentation, such as Arduino or STM32 or 51 open source code, please contact us and leave your email.
Additional information
| Color | Only robot frame, With 6pcs MG996R, 180 Package 1, 360 Package 2, 180 Package 3, 360 Package 4, Control board 1, Ps2 and control, Full set control, 6 ways control, 1 pcs DS3218 360, 1 pcs DS3230 360, Control board 3, Full set 1, Full set 2, Full set 3, Upgrade set 1, Upgrade set 2, Upgrade set 3, Control board 4, Full set 4, Upgrade set 4 |
|---|---|
| Ships From | China |
| Age Group |
